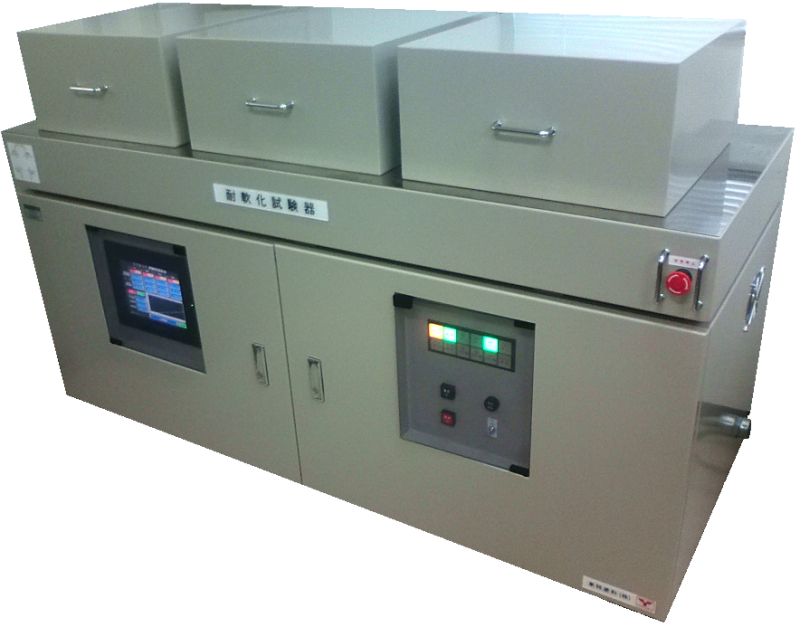

Elevated temperature type cut-through tester
Measure softening temperature of insulation film of enamelled wire
Characteristic of Elevated temperature type
cut-through tester
| Measurement method | Temperature rising type Intersection method |
| Number of sample | 4 specimens , 8 specimens, 12 specimens |
| Sample wire diameter |
φ 0.2 ~ 2.0 mm (Special order for large size wire and rectangular wire also available ) |
|
Maximum measurement temperature |
500 ℃ |
| Heating rate | 2℃ / min (program changeable) |
| Test data |
1 block (4 spacimens) × Date & time,and cut through temperature of last 48 tests is automatically saved An annular crossing over method cut through tester for fine wires (φ 0.02 to 0.19) also available |
